Setup for Android

Introduction#

The Android version of the Antidote SDK is compatible with various Unity versions:

  • Unity 6: fully supported
  • LTS 2023: fully supported
  • LTS 2022: fully supported
  • LTS 2021: fully supported
  • LTS 2020: fully supported
  • LTS 2019 and older versions might be supported, but these haven't been officially tested

Setup#

Unity#

Here's how to integrate the Antidote SDK with your Unity game on Android:

  1. Download the latest version of the Antidote SDK.
  2. Make sure you have TextMesh Pro (TMPro) installed.
    note

    You can check this in Unity's Package Manager by searching for TextMeshPro. See the "Tips & Troubleshooting" section below for detailed instructions.

  3. When the TMP Importer window appears, import TMP Essentials.
  4. Go to Assets/Import Package/Custom Package....
  5. Select the Antidote SDK file you downloaded: unity/antidote-sdk.unitypackage).
  6. Click Import.
  7. Go to Assets/AntidoteSDK/Scenes in the Project Explorer.
  8. Open the AntidoteSetup scene.
    Project Explorer
  9. Go to File/Build Settings....
  10. Click Add Open Scenes.
    Build Settings
  11. Ensure the AntidoteSDK scene is at the top of the list. If not, drag it to the top.
    Setup Object
  12. Close the window.
  13. Configure the features you want to use from Antidote SDK.
  14. Go to the AntidoteSetup/Setup object.
  15. On the Setup object, mark the features you want to enable/disable.
    Configure features
  16. (Optional) On the Watermark Prefab, edit the features to your preference.
    Configure watermark features

Watermark settings#

When you select the Watermark Prefab:

Configure watermark features

You will have access to the following settings:
FeatureDescription
SpeedThe speed at which the ticker(s) move across the display.
Change Position TimerThe number of seconds before the watermark behaviour updates - this is relevant for the Ticker, DVD and Random behaviours.
BehaviourThe watermark behaviour you want to display.

Game Events#

Events can be emitted during gameplay to track once-off events, and the duration of long-running events. These can be viewed on the session recording.

  1. open the assembly definition in the folder where it needs to be called
    Open assembly definition
  2. scroll down to Assembly Definition References
  3. click on +
    Add assembly reference
  4. click on the dot icon where it says (Missing Reference)
    Select AntidoteSDK
  5. double click on AntidoteSDK

Then, to emit an event add the following to your code:

using AntidoteSDK;
...
AntidoteSDK.Antidote.SendEvent("action", "eventName");

Game Events Data structure#

All game events consist of an action and an event name, where action can be one of the following:

ActionDescription
startmark the start of a long-running event (e.g. boss_battle)
endmark the end of a long-running event (e.g. boss_battle)
onceemit a once-off event (e.g. collected_powerup)

One last thing#

Antidote SDK requires internet connectivity to verify the user session. If you are exporting your game for Android, please make sure to enable android.permission.INTERNET in your AndroidManifest.xml.

Tips & Troubleshooting#

How to Install TMPro on Unity 2023 and older#

TextMeshPro is required for the Watermark text elements to function. It is part of Unity's default registry, so every project will have access to it without additional downloads. For step by step instructions for installation see below:

  1. Go to Package Manager and ensure you are on Packages: Unity Registry.
  2. Use the search bar to search TextMeshPro or scroll to the correct location
  3. Click Install in the bottom right of the window. If it says Remove or Update, it is already installed.
  4. If the TMP importer appears, click Import TMP Essentials. The Import TMP Examples & Extras is not necessary.
    Setup Object
note

If the Watermark has broken references due to TMPro missing, reimporting the AntidoteSDK Package will fix it after following the above steps.

How to Install TMPro on Unity 6#

TextMeshPro is essential for the Watermark text elements to work. Here's how to install it:

  1. Open the Package Manager and ensure you're on the Unity Registry.
  2. Search for Unity UI or locate it manually.
  3. Click Install. If it's already installed, you'll see Remove or Update.
  4. If the TMP Importer appears, click Import TMP Essentials. You don't need to import TMP Examples & Extras.
note

If the Watermark has broken references due to TMPro missing, reimporting the AntidoteSDK Package will fix it after following the above steps.

How to enable internet permission on Android#

By default, if Unity detects that you are using a network API, it will enable the INTERNET permission in your AndroidManifest.xml. Unfortunately this detection sometimes fails. In such cases we can force the permission, following the steps below:

  1. Go to File/Build Settings
  2. Under Platform, select Android
  3. Click the Player Settings button

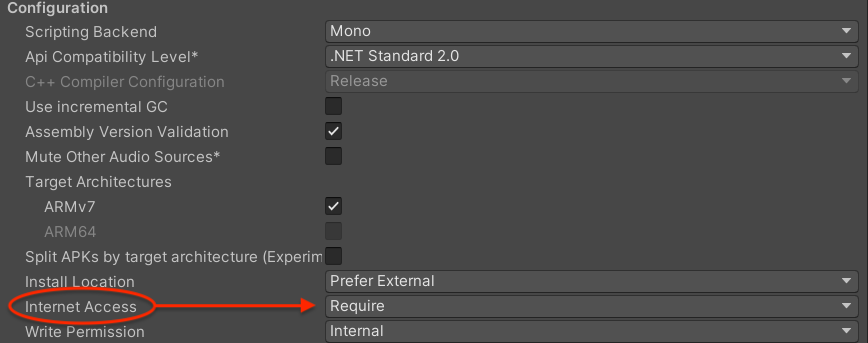

  4. Under Configuration, change Internet Access from Auto to Require
Force Internet Access Permission
